Drilling Mud Electric Power A05 Centrifugal Pump

Productivity:
8, 000 Sets/Years
Place of Origin:
Hebei China
Supply Ability:
8, 000 Sets/Years
  • Ms. Mayer Hou

Basic Info

Model No.:  MAH

Product Description

Model NO.: MAH Max.Capacity: >400 L/min Impeller Number: Single-Stage Pump Influent Type of Impeller: Single Suction Pump Pump Casing Combined: Horizontal Split Pumps Impeller: Closed Theory: Centrifugal Pump Power: Electric Wet End: A05, A07, A49, Rubber, Polyurethane Sealing: Mechanical Seal, PTFE Packing, Hi-Seal Color: Customer Specifications Upon Request Trademark: Modo Origin: Hebei China Max.Head: 110m-150m Driving Type: Motor Working Pressure: High Pressure Pump Position of Pump Shaft: Horizontal Pump Mounting Height: Suction Centrifugal Usage: Pump Structure: Single-Stage Pump Material: Cr27, Cr15mo3 Bearing: NSK, SKF, Timken Lubrication: Grease and Oil Standard or Nonstandard: Standard Specification: SGS ISO HS Code: 8413810090 Drilling Mud Electric Power A05 Centrifugal pump

Drilling Mud Electric Power A05 Centrifugal Pump

Characteristics

·Type: ·Media: ·Application:
centrifugal slurry macerator
·Other characteristics: ·Flow rate: ·Pressure
horizontal Min.:0m3/h Min.: 0Pa
  Max.: 5000m3/h Max.: 2020000Pa
·Head
Min: 0m
Max: 73m


Description

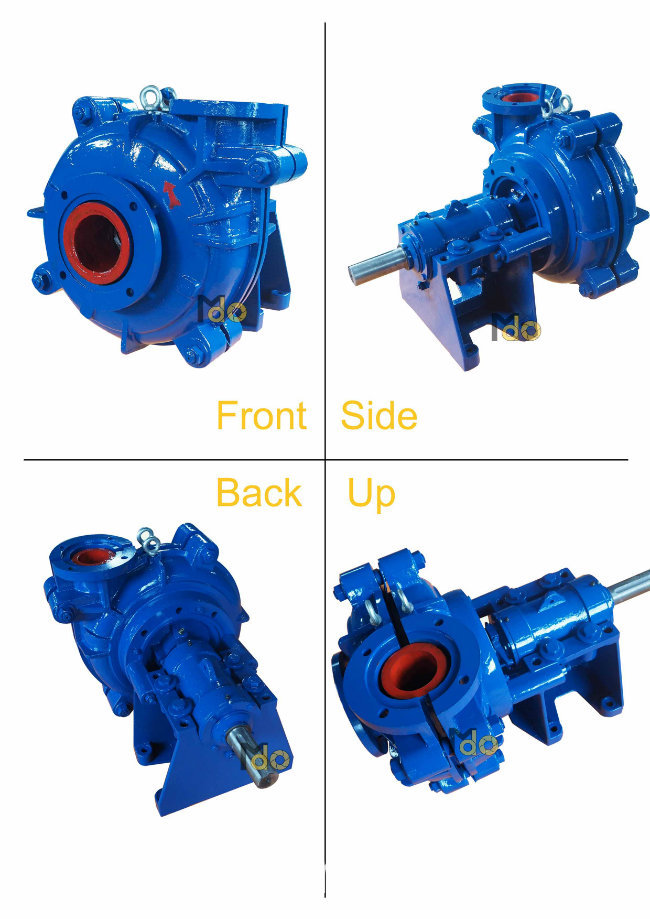

The Modo MAH series pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
MAH pumps are manufactured to be interchangeable with the most common Slurry Pump designs and feature a wide range of options. MAH Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.


Features

Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
Casing - casing halves of cast or ductile iron provide high operating pressure capabilities.
Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush - wear is reduced and maintenance simplified by the use of tapered.

Application

Transfer of abrasives and high density slurries in:
Mining
Metallurgical Processing
Civil Construction
Heavy Industry
Processing

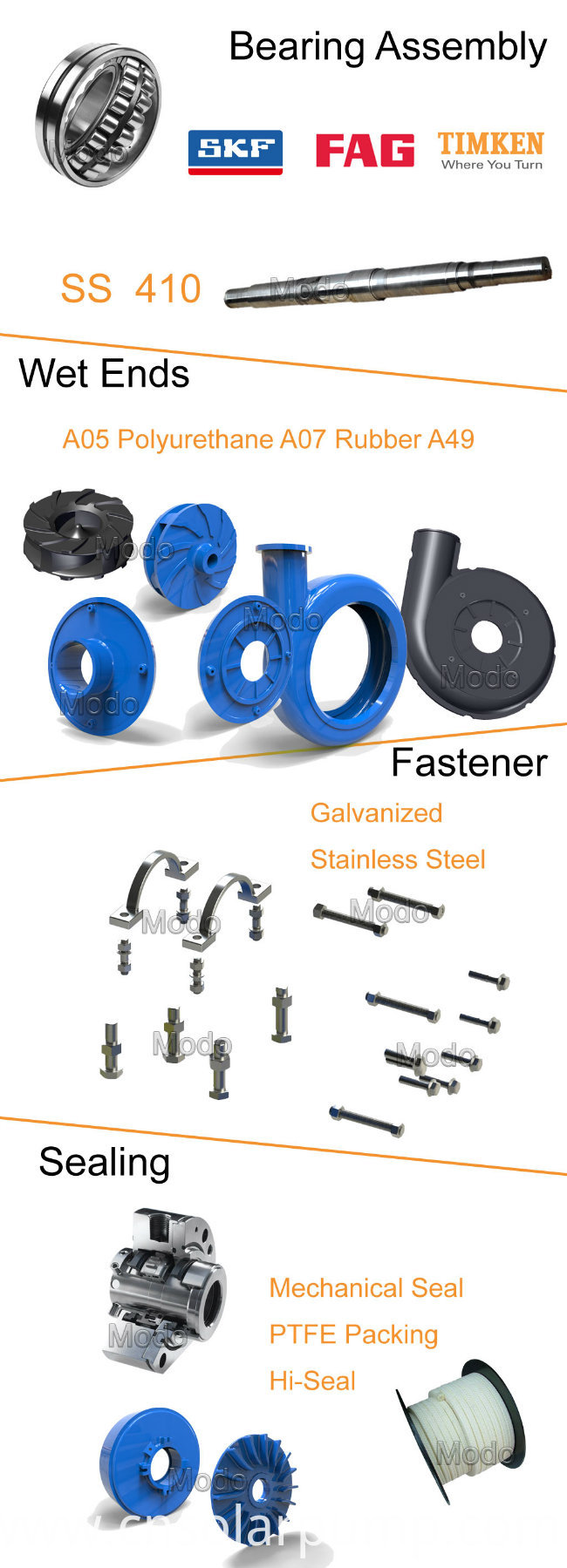

DetailsDrilling Mud Electric Power A05 Centrifugal Pump  Pump Parts Material

Rubber Pump

Metal Pump

No.

Part Description

Material

Specification

No.

PartDescription

Material Specification

1

Base

Cast Iron

1

Base

Cast Iron

2

Shaft

4140 High Tensile Steel*

2

Shaft 4140

High Tensile Steel*

3

Bearing Assembly

Timken (Cast Iron Body)

3

Bearing Assembly

Timken (Cast Iron Body)

4

Shaft Sleeve

420 Stainless Steel

4

Shaft Sleeve

420 Stainless Steel

5

Pump Casing

Cast Iron

5

Pump Casing

Cast Iron

6

Frame Plate

Liner Insert Rubber

6

Frame Plate

Liner 27% Chrome White Iron

7

Cover Plate

Liner Rubber

7

Volute Liner

27% Chrome White Iron

8

Impeller

Rubber Coated High Tensile Steel

8

Impeller 27%

Chrome White Iron

9

Throat Bush

Rubber

9

Throat Bush

27% Chrome White Iron

10

Cover Plate

Cast Iron

10

Joint Rings

Rubber

11

Stuffing Box

Cast Iron

11

Cover Plate

Cast Iron

12

Expeller

27% Chrome White Iron

12

Stuffing Box

Cast Iron

13

Expeller

Ring Natural Rubber

13
