2inch Suction Centrifugal Sludge Transfer Pump

Productivity:
8, 000 Sets/Years
Place of Origin:
Hebei China
Supply Ability:
8, 000 Sets/Years
  • Ms. Mayer Hou

Basic Info

Model No.:  Pump

Product Description

Model NO.: Pump Max.Capacity: >400 L/min Impeller Number: Single-Stage Pump Influent Type of Impeller: Single Suction Pump Pump Casing Combined: Horizontal Split Pumps Impeller: Closed Theory: Centrifugal Pump Power: Electric Wet End: A05, A07, A49, Rubber, Polyurethane Sealing: Mechanical Seal, PTFE Packing, Hi-Seal Color: Customer Specifications Upon Request Trademark: Modo Origin: Hebei China Max.Head: 110m-150m Driving Type: Motor Working Pressure: High Pressure Pump Position of Pump Shaft: Horizontal Pump Mounting Height: Suction Centrifugal Usage: Pump Structure: Single-Stage Pump Material: Cr27, Cr15mo3 Bearing: NSK, SKF, Timken Lubrication: Grease and Oil Standard or Nonstandard: Standard Specification: SGS ISO HS Code: 8413810090 2inch Suction Centrifugal Sludge Transfer Pump

2inch Suction Centrifugal Sludge Transfer Pump

Characteristics

·Type: ·Media: ·Application:
centrifugal slurry macerator
·Other characteristics: ·Flow rate: ·Pressure
horizontal Min.:0m3/h Min.: 0Pa
  Max.: 5000m3/h Max.: 2020000Pa
·Head
Min: 0m
Max: 73m


Description

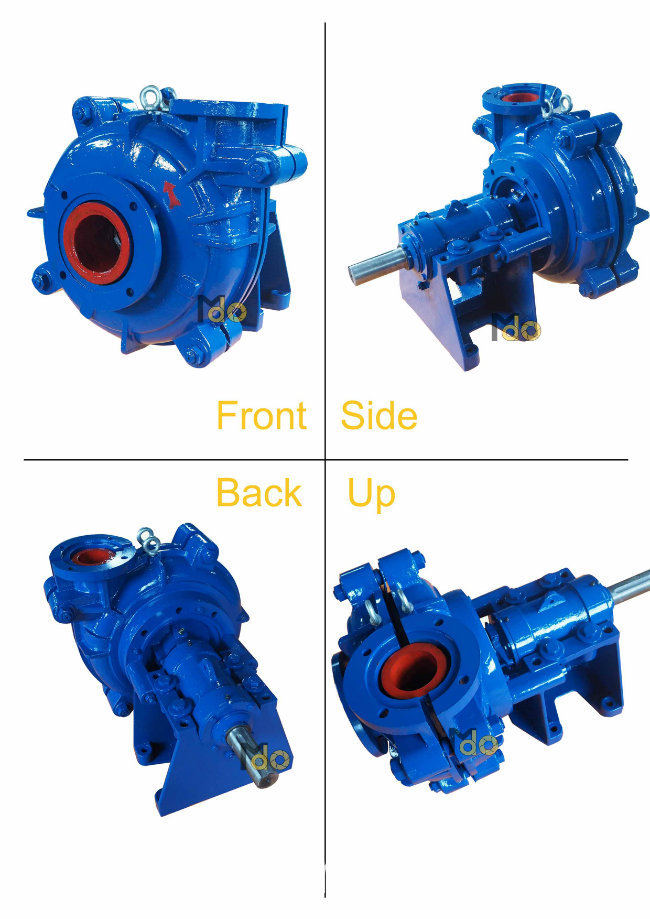

The Modo MAH series pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
MAH pumps are manufactured to be interchangeable with the most common Slurry Pump designs and feature a wide range of options. MAH Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.


Features

Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
Casing - casing halves of cast or ductile iron provide high operating pressure capabilities.
Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush - wear is reduced and maintenance simplified by the use of tapered.

Application

Transfer of abrasives and high density slurries in:
Mining
Metallurgical Processing
Civil Construction
Heavy Industry
Processing

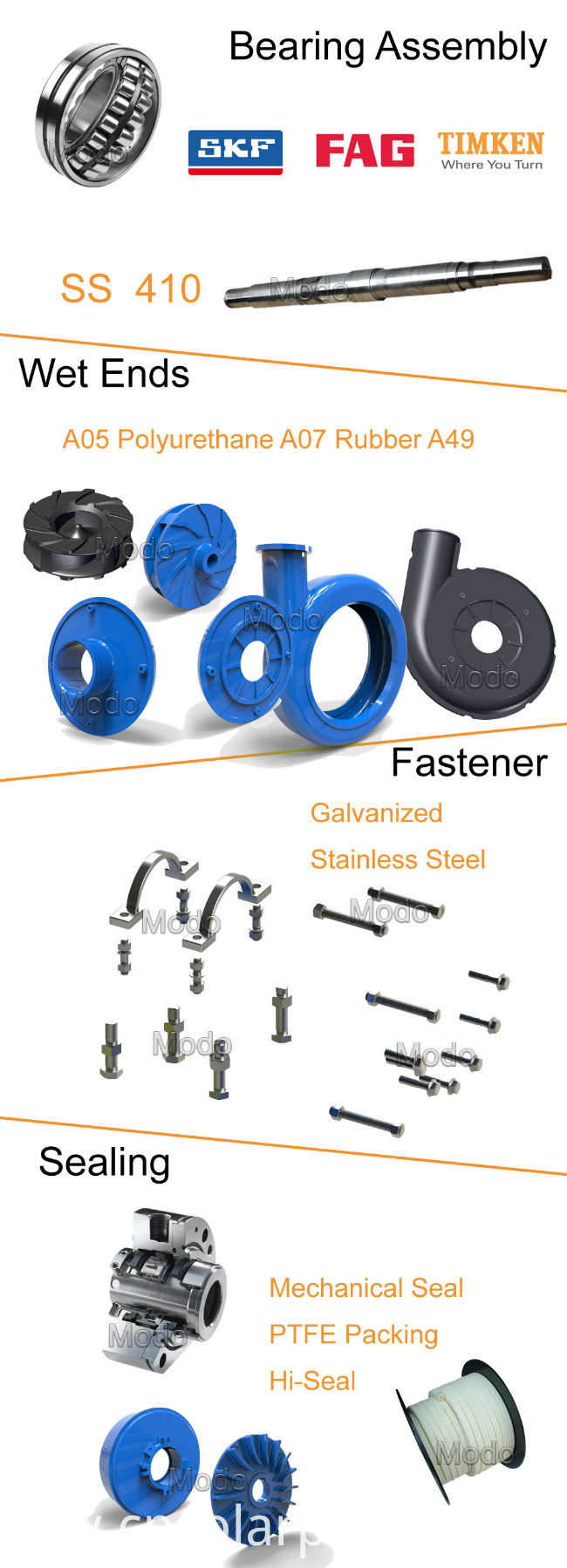

Details2inch Suction Centrifugal Sludge Transfer Pump  Pump Parts Material

Rubber Pump

Metal Pump

No.

Part Description

Material

Specification

No.

PartDescription

Material Specification

1

Base

Cast Iron

1

Base

Cast Iron

2

Shaft

4140 High Tensile Steel*

2

Shaft 4140

High Tensile Steel*

3

Bearing Assembly

Timken (Cast Iron Body)

3

Bearing Assembly

Timken (Cast Iron Body)

4

Shaft Sleeve

420 Stainless Steel

4

Shaft Sleeve

420 Stainless Steel

5

Pump Casing

Cast Iron

5

Pump Casing

Cast Iron

6

Frame Plate

Liner Insert Rubber

6

Frame Plate

Liner 27% Chrome White Iron

7

Cover Plate

Liner Rubber

7

Volute Liner

27% Chrome White Iron

8

Impeller

Rubber Coated High Tensile Steel

8

Impeller 27%

Chrome White Iron

9

Throat Bush

Rubber

9

Throat Bush

27% Chrome White Iron

10

Cover Plate

Cast Iron

10

Joint Rings

Rubber

11

Stuffing Box

Cast Iron

11

Cover Plate

Cast Iron

12

Expeller

27% Chrome White Iron

12

Stuffing Box

Cast Iron

13

Expeller

Ring Natural Rubber

13
