Oil lubricated vertical turbine pump

Product Description

Product Description

The MSP range of Big Capacity Metal Fitted Sump Pump has been designed to work over sumps and pits to transfer abrasive large particles and high density slurries. Being of cantilevered design, they do not require a shaft seal or water flush and can be run dry for long periods with no damage to pump components.

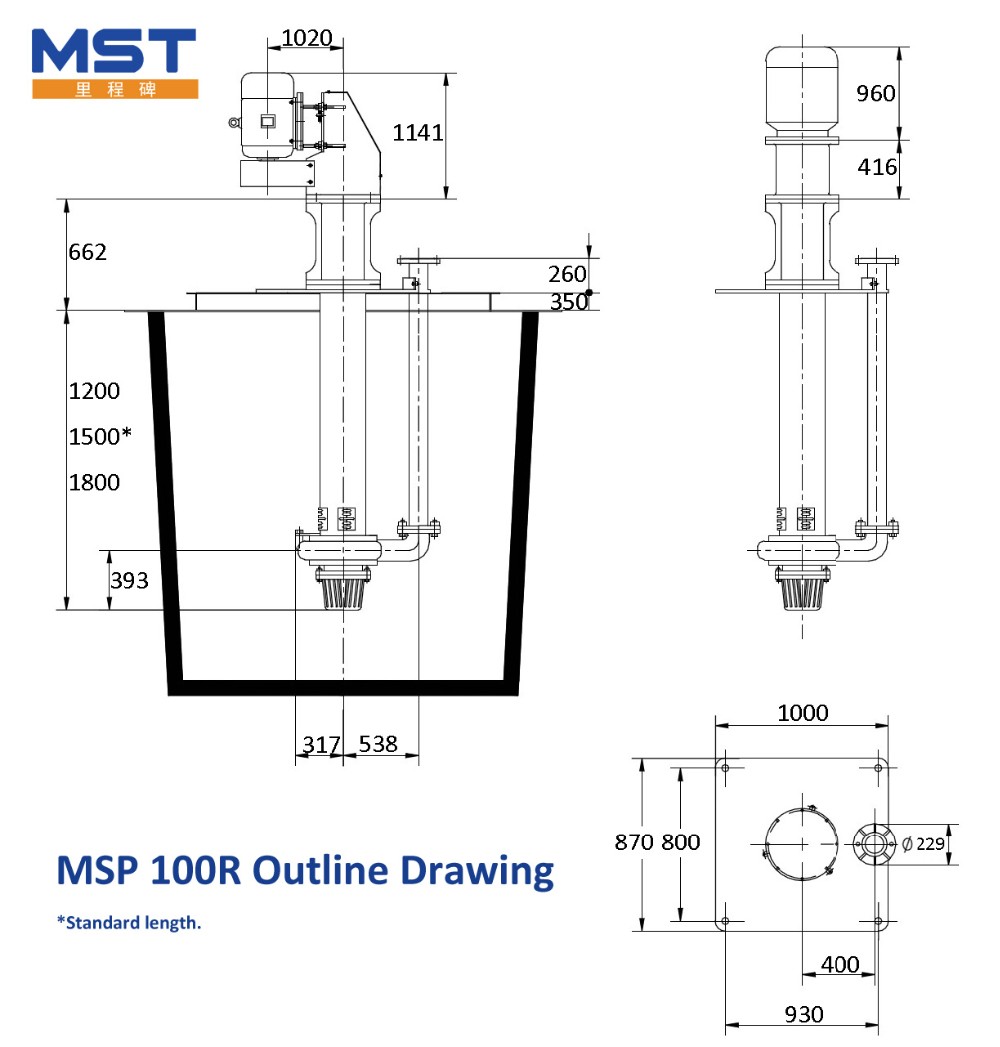

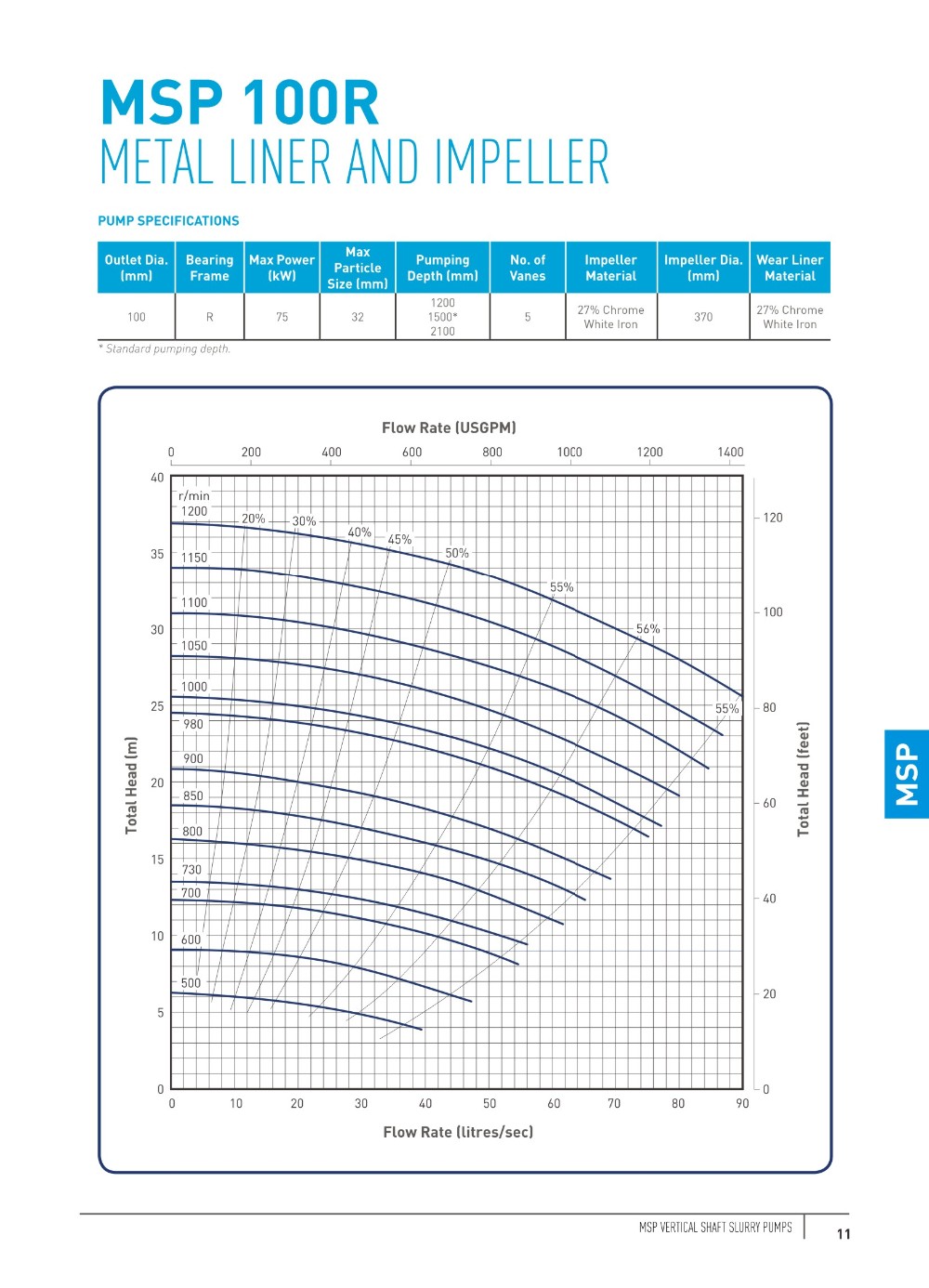

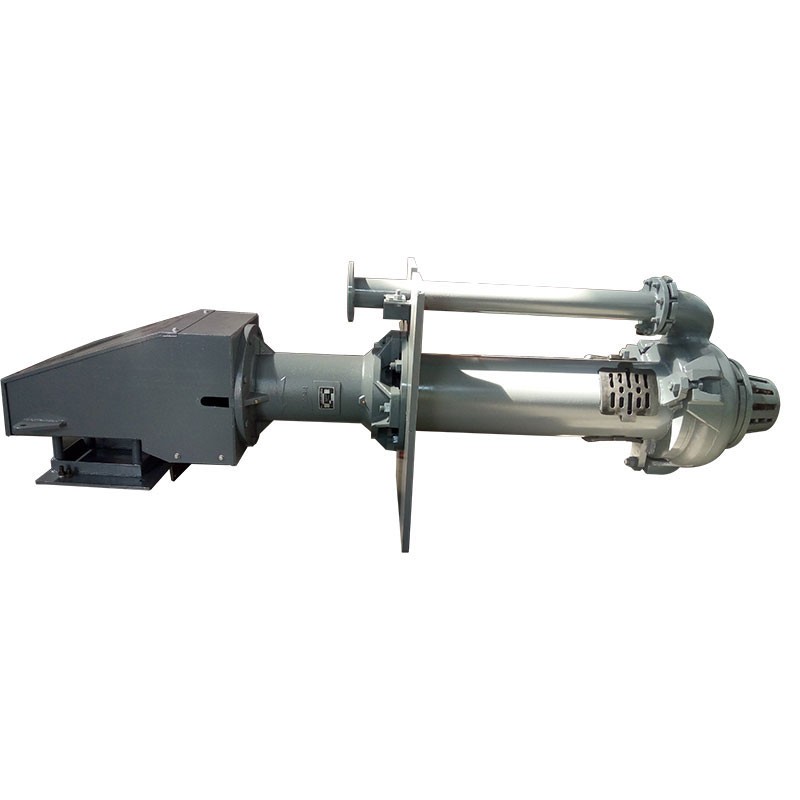

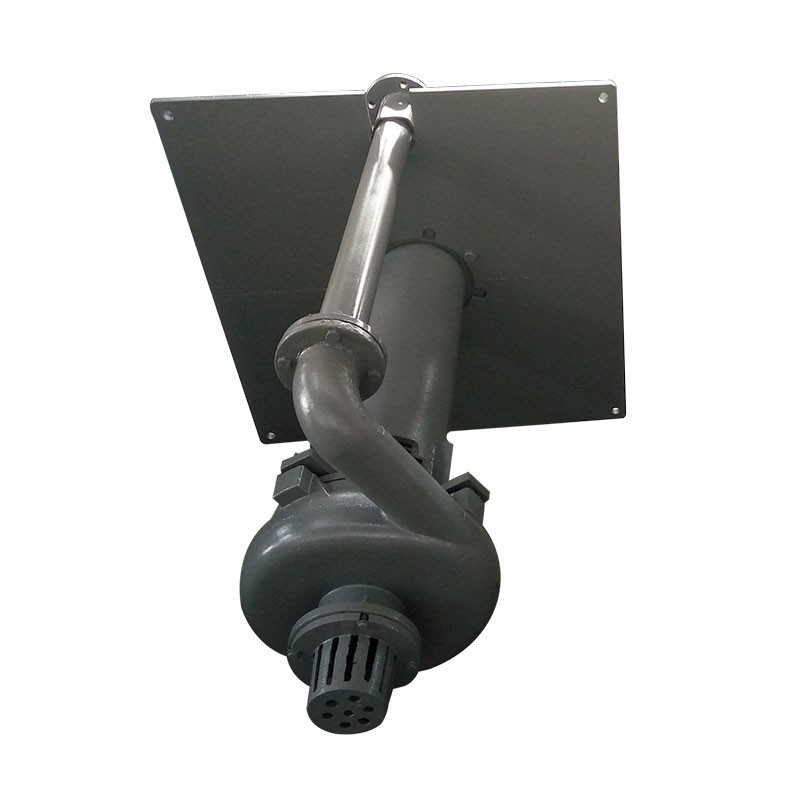

Detailed Images
Outlet Dia.(mm)
100
Impeller Material
High chrome
Inpeller Dia.(mm)
370
Bearing Frame
R
No. of Vanes
5
Shaft
4140 mild steel
Maximum Head
5-36m
Max particle size(mm)
32

Features


-The rotor parts can be adjusted axially and supported by multiple points, so heavy duty cantilever sump pump can operate steadily and reliably.


-The pump adopts a long shaft structure and can be inserted up to 10 meters deep. Shaft coupling is safe and reliable. Convenient disassembly.


-The impeller is immersed in the medium when the pump starts, so it is easy to start, and there is no air exhaust problem.


-The outlet flange is a half movable flange for easy connection

Applications

●Mineral processing
●Coal preparation
●Chemical processing
●Effluent handling
●Sand and gravel
●Tank, pit or hole-in-the-ground slurry handling situation

Our Company

SHIJIAZHUANG MILESTONE ENGINEERING & MANUAFCTURING CO.,LTD.


Milestone Engineering & Manufacturing is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of Slurry Pump and Water Pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.

Packing & Delivery
Certifications

Our service - professional attentive.

* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.

FAQ

Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, Sewage Pump, Chemical Pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
