Model No.: MS
|·Other characteristics:||·Flow rate:||·Head|
|Single-stage||Max.: 11600m3/h||Max: 200m|

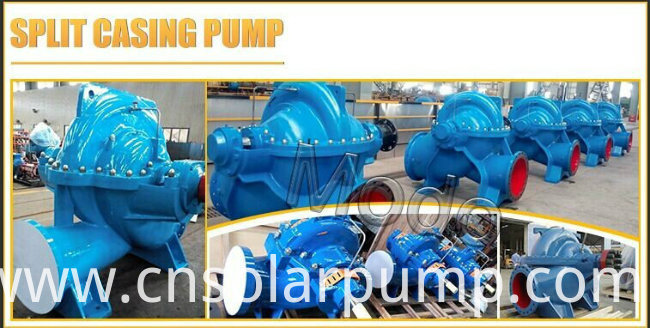

The S series pumps are single stage, double suction; horizontal split case pumps designed for high volume water transfer in a wide range of applications. Centurion pumps are available in 43 sizes ranging from 80mm to 400mm discharge and capable of capacities up to 4000 cubic meters per hour and heads up to 160 meters. Centurion pumps offer ease of maintenance with simple assembly/disassembly (no requirement for special tools). All major wear components and replaceable parts are easily accessible and can be changed out with minimal effort and downtime, without removing the suction and discharge piping.
Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide or rubber has good wear-resisting, corrosion resistance and high reliability.
High efficiency hard alloy, and low NPSH
To meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.
Through adjusting the clearance between protection board and impeller, ensuring the pump efficient operation
Using packing seal, impeller sealing, and container type mechanical seal to adapt to different operating mode requirement.

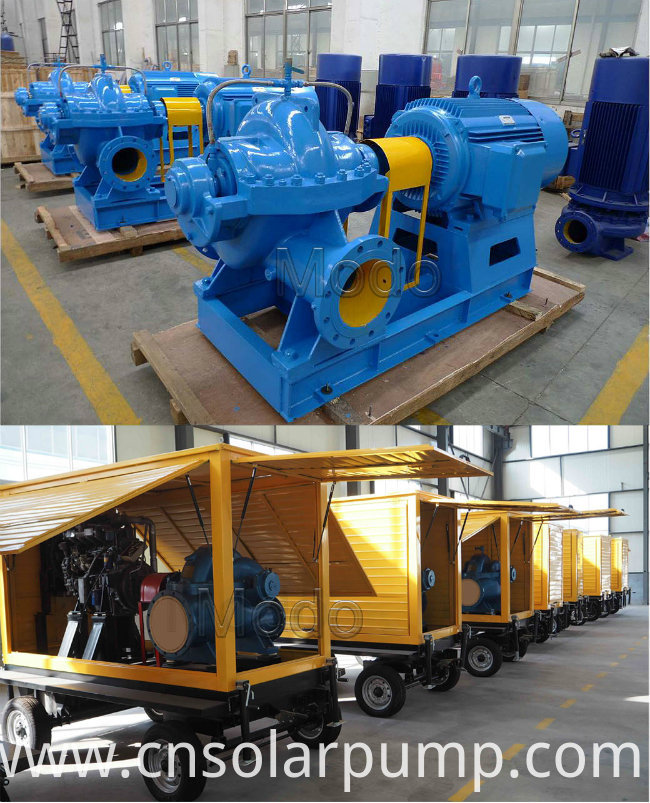

Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive.
The outflow direction can be installed by eight Angle rotation to adapt to different site installation condition.
Available to use multiple series, to satisfy the long-distance transmission requirements
|Item||Split case/double suction water pumps|
|Material||Cast iron SS 304,SS 316L, etc|
|Color||Decided by user|
|Impeller||Double suction impeller|
|Drive||Belt or coupling|
|Seal||Packing seal or mechanical seal|
|Speed||2950r/m, 1450r/min, 970r/min,730r/min,585r/min|
|Structure||Single stage pup|
|Usage||Clean water, raw water, sea water etc.|
|Power||Electric motor or Diesel engine|
|Application||Plant, mine, power station, urban water supply, irrigation etc|
|Outlet diameter||1 inch to 32 inch|
|Feature||High flow rate, high efficiency, easy maintenance|
Municipal Water Supply
Raw Water Supply
Dewatering (Clean Water)
A: What kind of company you are?
Q: We are centrifugal pump manufacture located in Boy Town, Baoding, China, with more than 20years experiences. We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.
A: What's the quality assurance you provided and how do you control quality?
Q: Established a procedure to check products at all stages of the manufacturing process: Casting, Heat treatment, Machining, Assembly, and Testing.
Q: Can you install the motor or diesel engine with the pump for us?
A: yes, we can, it's no problem, and we are experienced in this.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A......
Q: What certificates do you have?
A: CE, ISO 2008, UL.....
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 15-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
Q: What information should I offer to get pump solution?
2, Head: m
3, Flow: m3/h
4, Medium size: mm
5, Particle shape (smooth or sharp):
6, Medium pH level:
8, Drive type:
9. Power supply:
Contact me for detail offer with curve and drawing!
